Quick Fit Check

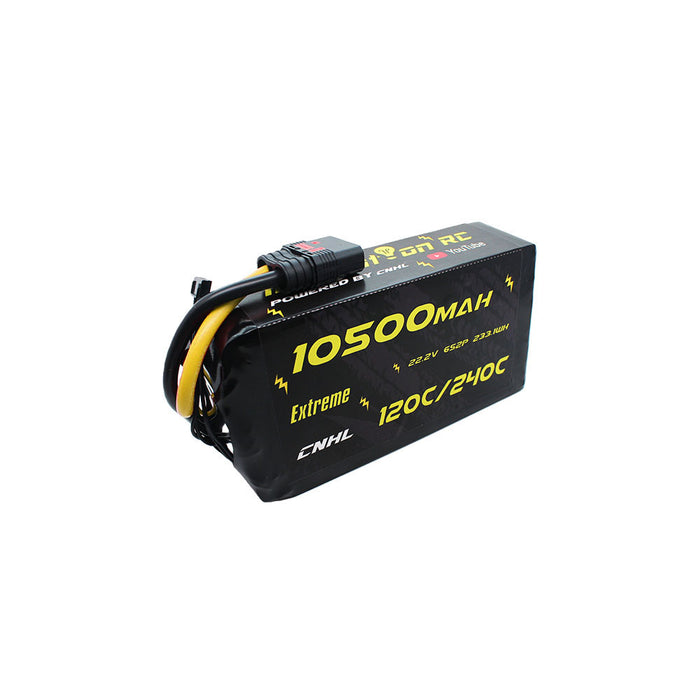

The CNHL Innovation RC Extreme Series 10500mAh 22.2V 6S 120C LiPo Battery with QS8 Plug is a large-format 6S high-capacity battery designed for RC users who need strong voltage, very high capacity, and a high-current connector system for serious power setups. It is best suited to heavy-duty RC applications already built around a 6S power system with enough room for a very large battery layout.
Before ordering, check four things first: your model should support 6S voltage, the battery area should fit this pack’s dimensions, the power system should match a QS8 connector, and the chassis or platform should be comfortable with a battery weighing about 1425g. If those points line up, this battery can be a very strong choice for users who want a large-capacity 6S setup with long runtime and serious current capability.
Product Specifications
| Capacity |
10500mAh |
| Voltage (S/cell) |
22.2V / 6S2P / 6 Cell |
| Discharge Rate (Continuous/Burst) |
120C / 240C |
| Output Connector |
QS8 Plug |
| Dimensions (L × W × H) |
164 × 46 × 92 mm |
| Weight |
Approx. 1425g |
| Charge Rate |
5C Max |
| Balance Connector |
JST-XH |
| Wire Gauge |
7 AWG |
| Stock Number |
10501206QS8 |
What Makes This 10500mAh 6S Battery Different
A 10500mAh 6S LiPo battery with QS8 is not a normal 6S replacement pack. It is designed for users who want high 6S voltage, a very large energy reserve, and a connector system prepared for serious current demand. That combination puts this battery into a much more specialized category than ordinary 6S packs.
The first major difference is capacity. At 10500mAh on 6S, this battery is built for setups where users want fewer battery swaps, more usable energy, and a more substantial power reserve than standard 6S packs can provide. The second difference is the QS8 connector and 7 AWG wire, which clearly place this battery in a high-current power-system class rather than a casual plug-and-play one.
The 120C discharge rate is just as important. On larger and heavier 6S applications, weaker batteries can feel soft or inconsistent once the demand rises. A battery like this is meant for users who want strong current delivery and a setup that still feels stable and forceful under load.
Applications
This battery is best suited to high-capacity 6S RC applications, especially where strong voltage, large energy reserve, and connector strength are already part of the intended build. It can make sense in heavy-duty surface RC projects, oversized custom platforms, demanding speed-focused builds, and other high-power applications where a conventional 6S pack would not provide the same runtime or current capability.
Because of its QS8 connector, very large case size, extra height, and heavy overall weight, this battery should be viewed as a specialty 6S option rather than a general-purpose replacement battery. It fits most naturally in builds where tray size, battery balance, connector type, and power demand have already been planned around a large-format pack.
That is the real role of this product. It is not designed to cover every 6S RC model on the market. It is built for users who specifically want a bigger, longer-running, higher-current 6S solution.
Part of the CNHL Innovation RC Extreme Series
This battery is part of the CNHL Innovation RC Extreme Series, the most powerful battery platform CNHL has made to date. Built around speedrun-focused power delivery, heavy-duty wire, and QS8 hardware, this series is aimed at advanced RC users who need stronger current transfer and less compromise in extreme high-load setups.
It is not positioned as a general-purpose pack for casual use. The Innovation RC Extreme Series is better suited to serious speedrun cars, drag-style builds, and other demanding RC platforms where connector quality, solder integrity, and total system resistance all play a real role in performance.
Important Notice for High-Power Use
For proper power transfer, this battery should be used with appropriate high-current connector hardware such as QS8, 8mm bullets, or larger ESC-side connectors. All solder work must be solid, as every soldered connection matters in extreme current applications.
For maximum performance, experienced users may cycle the pack 2 to 3 times and warm it to around 105-110°F before hard running. This battery is intended for advanced use. Please use at your own risk.
Where This Battery Makes the Most Sense
This battery makes the most sense in RC setups that are intentionally built around larger 6S packs, especially where runtime, power consistency, and connector strength matter more than keeping the battery compact. Users looking at a battery in this class are usually choosing a specific setup direction on purpose rather than shopping for a general replacement pack.
That is why fitment matters so much here. With a battery this size, the key checks are not only voltage, but also tray length, battery height, total weight, and connector format. For the right setup, that extra capacity can be a major advantage. For the wrong setup, it is simply much more battery than the chassis or airframe was designed around.
Large-Format 6S Fitment Direction
This battery may be relevant to powerful and larger-format RC builds where the tray space and connector system have already been adapted for a pack in this class. It is the kind of battery that makes the most sense in specialized high-demand applications rather than in standard stock battery compartments.
That is why a battery like this should always be matched by voltage, connector, dimensions, and overall platform balance, not by voltage alone. A large-capacity 6S QS8 battery is a very specific solution, and it performs best when the full setup has been built with that in mind.
More Choices in the 6S Range
If you are comparing different large 6S battery directions, this pack is best for users who want very high capacity and a QS8 high-current format. If you want a smaller or more conventional 6S option, other CNHL packs may be a more natural fit depending on connector preference and tray size.
Best Use Case
This product is best for RC users who already know they want a large-format 6S battery and are building around that requirement intentionally. That usually means prioritizing long runtime, high current capability, and a power system that can fully make use of the QS8 connector.
If the goal is simply to find a normal 6S replacement battery for a standard tray, smaller and more conventional options will usually make more sense. But if the setup is intentionally moving toward a bigger-capacity, heavy-duty 6S direction, this battery fills that role very clearly.
FAQ
What kind of setup is this battery best for?
It is best for larger or custom-fit 6S RC setups where long runtime, strong discharge capability, and a high-current QS8 connector are part of the intended power system.
What is the main advantage of this battery?
The main advantages are very high capacity, strong current delivery, and a serious connector format. It is designed for users who want a long-running and heavy-duty 6S solution.
Why would someone choose such a large 6S battery?
Some users want strong 6S voltage but also need much more runtime and stronger current support than ordinary 6S packs can provide. This battery is designed for that kind of setup.
What should I confirm before buying?
Check voltage, connector type, battery dimensions, and total weight first. With a battery in this size class, physical fitment and overall platform balance are just as important as electrical compatibility.
Package Includes
1 × CNHL Innovation RC Series 10500mAh 22.2V 6S 120C LiPo Battery with QS8 Plug
Notice
- Please confirm voltage, connector type, battery tray size, and acceptable weight range before purchase.
- Manual measurement may result in slight size differences.
- Please stop charging immediately if the battery behaves abnormally during charging.
- Check the battery surface, connector, and cell voltage before first use.
- If a new battery does not seem to deliver full performance initially, use a proper balance charger and complete several normal charge and discharge cycles.
- Always follow standard LiPo safety procedures during charging, storage, and transport.
