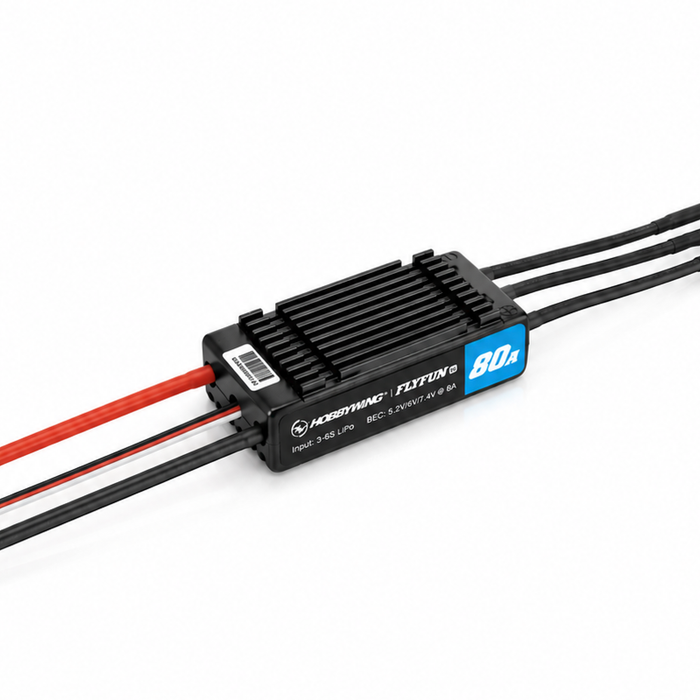

Hobbywing FlyFun 80A 6S V5 Brushless ESC with Adjustable BEC for RC Airplanes and EDF Jets

The Hobbywing FlyFun 80A 6S V5 is a brushless ESC designed for RC airplanes, EDF jets, sport aircraft, and fixed-wing power systems that need a capable 3–6S LiPo ESC with built-in receiver power. With an 80A continuous current rating, 100A peak current, and adjustable 5.2V / 6.0V / 7.4V switch-mode BEC, it is a practical FlyFun V5 option for medium-size aircraft where throttle response, cooling, BEC load, and installation space all matter.

This model is not an OPTO ESC. It includes a built-in BEC rated at 8A continuous / 20A peak, which can simplify wiring when your receiver, servos, flight controller, retracts, or onboard electronics are compatible with the selected BEC voltage and current load. Before installation, always check motor current, LiPo voltage, servo load, receiver voltage range, connector rating, cooling airflow, and available mounting space.

Key Features

• 80A aircraft ESC: suitable for medium-size fixed-wing, EDF, and sport aircraft setups when the motor, battery, connector, and cooling system are correctly matched.
• 3–6S LiPo input range: works with common 3S, 4S, 5S, and 6S aircraft power systems.
• Adjustable switch-mode BEC: 5.2V / 6.0V / 7.4V output with 8A continuous and 20A peak capability for compatible receiver and servo systems.
• DEO Technology / Active Freewheeling: helps improve throttle response, driving efficiency, throttle linearity, and ESC operating temperature.
• 32-bit MCU platform: designed for stable brushless motor control and reliable aircraft power delivery.
• Soft and Very Soft start-up modes: useful for EDF jets and larger propeller aircraft where smoother spool-up is preferred.
• Programmable setup: adjustable parameters can be configured by Hobbywing LED program box or transmitter.
• Multiple protections: includes start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, abnormal input voltage protection, and throttle signal loss protection.

Product Specifications

Why Choose the FlyFun 80A 6S V5?

The FlyFun 80A 6S V5 is a strong fit when your aircraft does not need a high-voltage 6–14S ESC, but still needs more capability than a small park-flyer controller. It gives pilots a useful middle ground: 3–6S LiPo support, 80A current capacity, adjustable BEC voltage, and the FlyFun V5 feature set in a compact 92g package.

This makes it practical for medium-size fixed-wing aircraft, EDF jets, sport planes, and electric conversions where a clean built-in BEC layout is preferred. The final match still depends on your motor, propeller or EDF unit, expected current draw, battery voltage, connector quality, BEC load, and airflow inside the aircraft.

80A 6S V5 vs 110A HV SBEC V5

The FlyFun 80A 6S V5 and FlyFun 110A HV SBEC V5 both include built-in BEC output, but they are not aimed at the same aircraft power class. The 80A 6S version is better for 3–6S setups that need a lighter, more compact ESC, while the 110A HV SBEC version is for 6–14S aircraft that need higher voltage support and more current headroom.

In simple terms, choose the 80A 6S V5 for lighter 3–6S aircraft power systems. Choose the 110A HV SBEC V5 when your aircraft moves into the 6–14S high-voltage class or needs more current headroom.

Adjustable BEC for Receiver and Servo Power

The built-in switch-mode BEC is one of the key reasons to choose the FlyFun 80A 6S V5. With adjustable 5.2V, 6.0V, and 7.4V output, it can power compatible receivers, servos, and onboard electronics without requiring a separate receiver battery in many aircraft setups.

Because aircraft electronics vary widely, BEC capacity should always be checked carefully. Count the number of servos, confirm servo voltage range, consider peak servo load during flight, and verify whether retracts, lights, flight controllers, or other accessories add extra current demand.

DEO Technology and Active Freewheeling

Hobbywing’s DEO Technology, also described as Active Freewheeling, is designed to improve driving efficiency, throttle response, and throttle linearity while helping reduce ESC operating temperature. For fixed-wing aircraft and EDF jets, smoother throttle behavior can make the power system feel more controlled and predictable.

For best results, DEO should be supported by a correct overall setup. Propeller size, EDF load, motor KV, battery condition, cooling airflow, soldering quality, and connector rating all have a direct impact on ESC temperature and reliability.

Soft Start-up for EDF Jets and Sport Aircraft

The FlyFun V5 platform includes Normal, Soft, and Very Soft start-up modes. For EDF jet airplanes and larger propeller aircraft, Soft or Very Soft start-up should be considered to reduce sudden load on the power system during spool-up.

For EDF applications, always follow the manual guidance for start-up mode selection. Ducted fans can place heavy load on the motor and ESC during acceleration, so smoother start-up and adequate cooling are especially important.

Programmable Parameters

The FlyFun 80A 6S V5 can be programmed with a Hobbywing LED program box or by transmitter. Adjustable setup items may include voltage cutoff type, LiPo cell setting, cutoff voltage, BEC voltage, start-up mode, timing, motor direction, freewheeling, and factory reset options.

For field setup, the LED program box is usually the more convenient choice because it allows parameters to be checked and adjusted more directly. After changing parameters, power-cycle the ESC so the new settings can take effect.

Multiple Protection Functions

The FlyFun V5 platform includes protection features designed to help reduce damage risk during abnormal conditions. These include start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, abnormal input voltage protection, and throttle signal loss protection.

Protection features are not a substitute for correct setup. If the ESC overheats, reduces output, stutters, or activates protection during use, check airflow, load, propeller or EDF choice, battery voltage, connectors, and motor condition before flying again.

Before You Install This ESC

• Check your aircraft manual and recommended ESC current rating.
• Confirm motor current draw under the selected propeller or EDF load.
• Use only a compatible 3–6S LiPo power setup.
• Confirm the receiver and servo voltage range before using the built-in BEC.
• Estimate total BEC load, including servos, retracts, lights, flight controller, and other electronics.
• Make sure the ESC has enough cooling airflow inside the fuselage.
• Confirm connector current rating and soldering quality before flight.
• Check installation space against the ESC size of 69.8 × 34.6 × 19.2mm.
• Recalibrate throttle range when using a new transmitter or ESC setup.

Recommended Collection Paths

For more ESC options, explore Hobbywing FlyFun ESCs, Hobbywing ESCs, and RC Airplane ESCs. For aircraft setups that need built-in receiver power, compare ESCs with BEC. For 6S aircraft power systems, visit 6S ESCs. For setup accessories, visit ESC Programmers & Accessories.

User Manual

Download the official Hobbywing FlyFun ESC V5 user manual here: Hobbywing FlyFun ESC V5 User Manual.

FAQ

Does the FlyFun 80A 6S V5 have a built-in BEC?

Yes. It includes an adjustable 5.2V / 6.0V / 7.4V switch-mode BEC rated at 8A continuous and 20A peak. Always confirm your receiver, servo voltage range, and total BEC load before use.

Can I use the FlyFun 80A 6S V5 with a 6S LiPo battery?

Yes. This ESC supports 3–6S LiPo input. Make sure your motor, propeller or EDF unit, connector, battery discharge capability, and cooling setup are compatible with the expected current draw.

Is the FlyFun 80A 6S V5 suitable for EDF jets?

Yes, it can be considered for EDF jet aircraft when the voltage, motor current, fan size, connector, BEC load, and cooling setup are compatible. For EDF use, Soft or Very Soft start-up should be considered according to the manual guidance and the size of the ducted fan.
