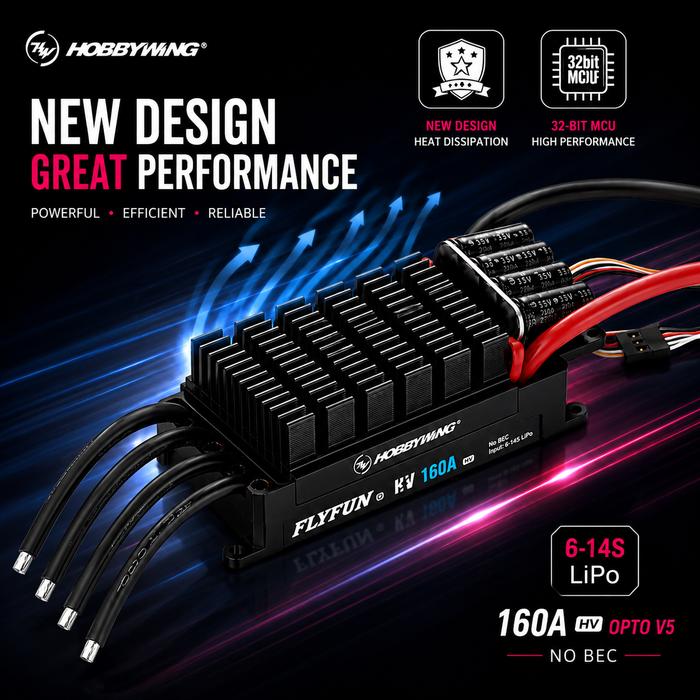

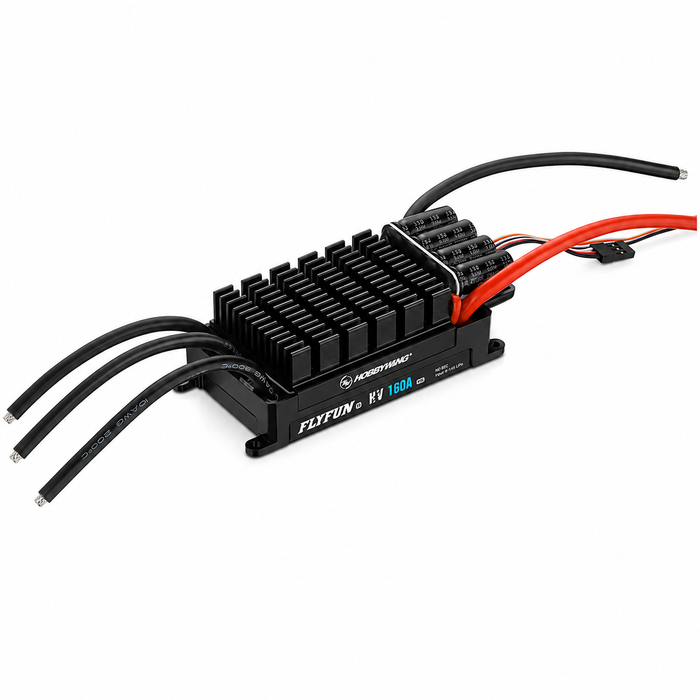

The Hobbywing FlyFun 160A HV OPTO V5 is a high-voltage brushless ESC designed for demanding RC aircraft power systems, including large fixed-wing airplanes, EDF jets, sport aircraft, and high-power electric conversions. With a 160A continuous current rating, 200A peak current, and 6–14S LiPo input support, it is built for setups where current capacity, throttle control, cooling, and receiver power planning all matter.
This is an OPTO ESC, which means it does not include a built-in BEC. It should be used with a suitable external BEC, power distribution system, or independent receiver battery when compatible with your aircraft electronics. Before installation, always check motor current, LiPo voltage, receiver power requirements, servo load, connector rating, cooling airflow, and available mounting space.
Key Features
-
160A high-current aircraft ESC: built for high-power fixed-wing and EDF aircraft setups when the motor, battery, connector, and cooling system are correctly matched.
-
6–14S LiPo input range: supports high-voltage aircraft power systems for large electric airplanes, EDF jets, and demanding sport aircraft.
-
OPTO power layout: no built-in BEC, allowing pilots to plan receiver and servo power separately with an external BEC, power distribution system, or independent receiver battery.
-
DEO Technology / Active Freewheeling: helps improve throttle response, driving efficiency, throttle linearity, and ESC operating temperature.
-
32-bit MCU platform: designed for stable brushless motor control and reliable high-power aircraft operation.
-
Soft and Very Soft start-up modes: useful for large propeller aircraft and EDF jets where smoother spool-up is preferred.
-
Programmable setup: adjustable parameters can be configured by Hobbywing LED program box or transmitter.
-
Multiple protections: includes start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, abnormal input voltage protection, and throttle signal loss protection.
Product Specifications
| Brand |
Hobbywing |
| Model |
FlyFun 160A HV OPTO V5 |
| ESC Type |
Brushless OPTO ESC for RC aircraft |
| Continuous Current |
160A |
| Peak Current |
200A |
| Input Voltage |
6–14S LiPo |
| BEC Output |
No built-in BEC / OPTO layout |
| Programming |
Hobbywing LED program box or transmitter |
| Approx. Weight |
221.5g |
| Size (L × W × H) |
110 × 50.3 × 33.2mm |
| Stock Number |
30201650 |
Why Choose the 160A HV OPTO Version?
The FlyFun 160A HV OPTO V5 sits at the high-power end of the FlyFun V5 aircraft ESC range. Compared with lower-current FlyFun options, it is better suited for aircraft where the power system may demand more current headroom, higher-voltage LiPo support, and more deliberate receiver power planning.
This makes it a practical choice to consider for large fixed-wing aircraft, high-output EDF jets, and electric conversion projects where the ESC is part of a larger power system rather than a simple plug-and-play upgrade. The final match still depends on your motor, propeller or EDF unit, expected amp draw, battery voltage, connector quality, and airflow inside the aircraft.
FlyFun 160A HV OPTO V5 vs SkyWalker 160A HV OPTO V2
The FlyFun 160A HV OPTO V5 and SkyWalker 160A HV OPTO V2 are both 160A, 6–14S, OPTO aircraft ESCs with no built-in BEC. The reason to choose the more premium FlyFun version is not a higher amp rating, but its lighter high-power layout, low-impedance PCB design, current endurance, and heat-dissipating construction.
| FlyFun 160A HV OPTO V5 |
Better if you want a lighter premium 160A ESC, FlyFun V5 build quality, low-resistance power design, DEO efficiency, and smoother Soft / Very Soft start-up behavior for EDF or large fixed-wing setups. |
| SkyWalker 160A HV OPTO V2 |
Better if you want a more practical 160A HV OPTO airplane ESC with the SkyWalker V2 platform, 120MHz ARM M4 control, very high motor RPM support, and Search Mode for aircraft recovery. |
In simple terms, choose FlyFun 160A HV OPTO V5 when weight, current endurance, heat management, and premium power-system feel matter more than price. Choose SkyWalker 160A HV OPTO V2 when value, SkyWalker familiarity, and practical aircraft utility features are the bigger priority.
OPTO Layout: Plan Receiver Power Separately
The FlyFun 160A HV OPTO V5 does not include a built-in BEC. For large aircraft, an OPTO layout is often selected when the receiver and servo power system needs to be planned separately from the main propulsion ESC. Depending on your aircraft, this may involve an external UBEC, a power distribution system, or a dedicated receiver battery.
This can be useful for high-power aircraft with multiple servos, retracts, lights, flight controllers, or other onboard electronics. It also means the setup requires more careful wiring. Always confirm the receiver voltage range, servo voltage range, total servo current demand, connector quality, and power redundancy requirements before flight.
DEO Technology and Active Freewheeling
Hobbywing’s DEO Technology, also described as Active Freewheeling, is designed to improve driving efficiency, throttle response, and throttle linearity while helping reduce ESC operating temperature. For large propeller aircraft and EDF jets, smoother throttle behavior can make the power system feel more controlled and predictable.
For best results, DEO should be supported by a correct overall setup. Propeller size, EDF load, motor KV, battery condition, cooling airflow, soldering quality, and connector rating all have a direct impact on ESC temperature and reliability.
Soft Start-up for EDF Jets and Large Aircraft
The FlyFun V5 platform includes Normal, Soft, and Very Soft start-up modes. For EDF jet airplanes and large propeller aircraft, Soft or Very Soft start-up should be considered to reduce sudden load on the power system during spool-up.
For EDF applications, always follow the manual guidance for start-up mode selection. Large ducted fans can place heavy load on the motor and ESC during acceleration, so smoother start-up and adequate cooling are especially important.
Programmable Parameters
The FlyFun 160A HV OPTO V5 can be programmed with a Hobbywing LED program box or by transmitter. Adjustable setup items may include brake type, brake force, voltage cutoff type, LiPo cell setting, cutoff voltage, start-up mode, timing, motor direction, freewheeling, and factory reset options.
For field setup, the LED program box is usually the more convenient choice because it allows parameters to be checked and adjusted more directly. After changing parameters, power-cycle the ESC so the new settings can take effect.
Multiple Protection Functions
The FlyFun V5 platform includes protection features designed to help reduce damage risk during abnormal conditions. These include start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, abnormal input voltage protection, and throttle signal loss protection.
Protection features are not a substitute for correct setup. If the ESC overheats, reduces output, stutters, or activates protection during use, check airflow, load, propeller or EDF choice, battery voltage, connectors, and motor condition before flying again.
Before You Install This ESC
- Check your aircraft manual and recommended ESC current rating.
- Confirm motor current draw under the selected propeller or EDF load.
- Use only a compatible 6–14S LiPo power setup.
- Plan receiver and servo power separately because this OPTO ESC has no built-in BEC.
- Make sure the ESC has enough cooling airflow inside the fuselage.
- Confirm connector current rating and soldering quality before flight.
- Check installation space against the ESC size of 110 × 50.3 × 33.2mm.
- Recalibrate throttle range when using a new transmitter or ESC setup.
Recommended Collection Paths
For more ESC options, explore Hobbywing FlyFun ESCs, Hobbywing ESCs, and RC Airplane ESCs. For high-voltage aircraft layouts, you can also compare HV ESCs and OPTO ESCs. If you need receiver power planning for OPTO setups, check CNHL LiFe Batteries. For setup accessories, visit ESC Programmers & Accessories.
User Manual
Download the official Hobbywing FlyFun ESC V5 user manual here: Hobbywing FlyFun ESC V5 User Manual.
FAQ
Does the FlyFun 160A HV OPTO V5 have a built-in BEC?
No. This is an OPTO ESC, so it does not include a built-in BEC. You need to plan receiver and servo power separately with a compatible external BEC, power distribution system, or independent receiver battery.
Can I use the FlyFun 160A HV OPTO V5 for EDF jets?
Yes, it can be considered for EDF jet aircraft when the voltage, motor current, fan size, connector, and cooling setup are compatible. For EDF use, Soft or Very Soft start-up should be considered according to the manual guidance and the size of the ducted fan.
Is this ESC suitable for every 14S aircraft setup?
Not automatically. Although the ESC supports 6–14S LiPo, the final setup depends on motor current, propeller or EDF load, airflow, installation space, connector rating, battery performance, and receiver power planning. Always confirm the complete power system before use.
