Quick Fit Check
-
Continuous / Peak Current: 20A / 30A peak
-
Battery: 3-4S LiPo
-
BEC: No
-
Motor Connectors: 3.5mm gold female connectors
-
Battery Connector: Not installed
-
Typical Application: 330/450 class multirotors and quadcopters
-
Available SKUs: 30901004 and 30901012
The Hobbywing XRotor 20A 4S BLDC ESC is a dedicated brushless electronic speed controller developed for multirotor aircraft. Rated for 20A continuous current and 30A peak current, it supports 3-4S LiPo batteries and is intended primarily for 330/450 class multirotor and quadcopter power systems.
Unlike a general-purpose surface or airplane ESC, the XRotor 20A uses control software developed specifically for the rapid and repeated throttle changes required by multirotor flight. Its key features include fast throttle response, optimized compatibility with multirotor motors, twisted-pair throttle signal wiring, low-resistance MOSFETs and throttle signal frequency support up to 621Hz.
This product page combines two XRotor 20A variants: 30901004 and 30901012. Their principal electrical ratings, supported battery range, BEC configuration, wiring and intended application are the same. Their physical dimensions and weight differ, so check the selected version against the available mounting space and wiring layout of your aircraft before ordering.
Hobbywing XRotor 20A Specifications
| Continuous Current |
20A |
| Peak Current |
30A |
| Battery |
3-4S LiPo |
| BEC Output |
No BEC |
| Input Wires |
Red 18AWG × 150mm × 1; Black 18AWG × 150mm × 1 |
| Motor Output Wires |
Black 18AWG × 75mm × 3 |
| Input Connector |
None |
| Motor Connectors |
3.5mm gold female connectors |
| Throttle Range Calibration |
Supported |
| Programming Method |
Transmitter throttle-stick programming |
| Timing |
Intermediate / High |
| DEO |
Not supported |
| OneShot Throttle Mode |
Not supported |
| LED Color Programming |
Not supported |
| Motor Rotation Programming |
Not supported |
| Typical Application |
330/450 class multirotors / quadcopters |
Choose the Correct XRotor 20A Version
Both variants on this page use the same 20A / 30A current rating, 3-4S LiPo operating range, no-BEC configuration, wire gauge and 3.5mm female motor connectors. The main differences relevant when ordering are their physical dimensions and weight.
| Version |
SKU |
Dimensions |
Weight |

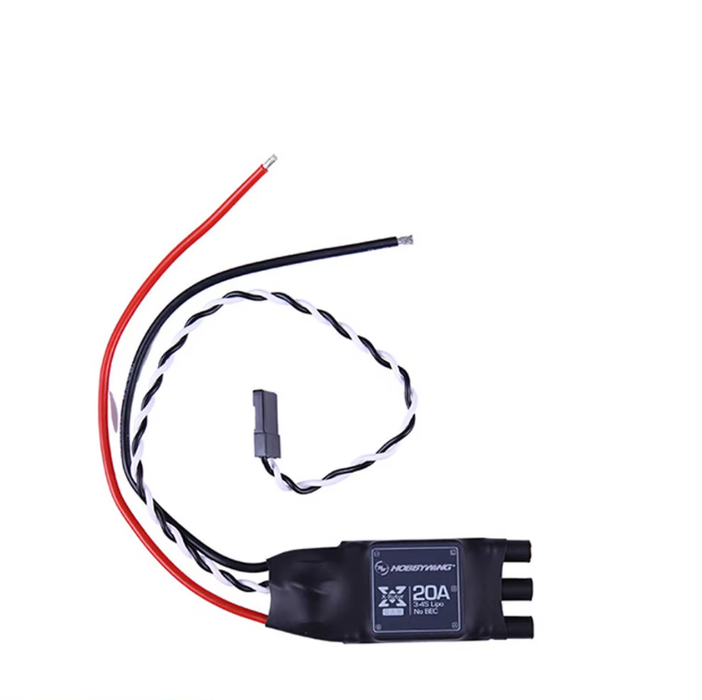

| XRotor-20A Asian Version |
30901004 |
50.0 × 21.6 × 12.0mm |
Approx. 15g |

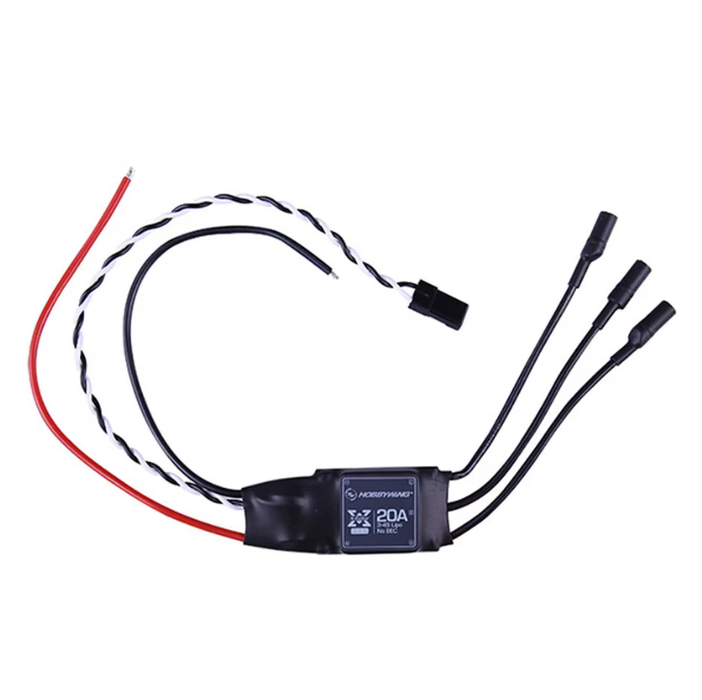

| XRotor-20A Wire Leaded Asian Version |
30901012 |
42.0 × 21.6 × 12.0mm |
Approx. 18.5g |
Version Note: Select the version according to the exact SKU required for your build. Confirm ESC mounting space, wire routing and connector clearance before installation.

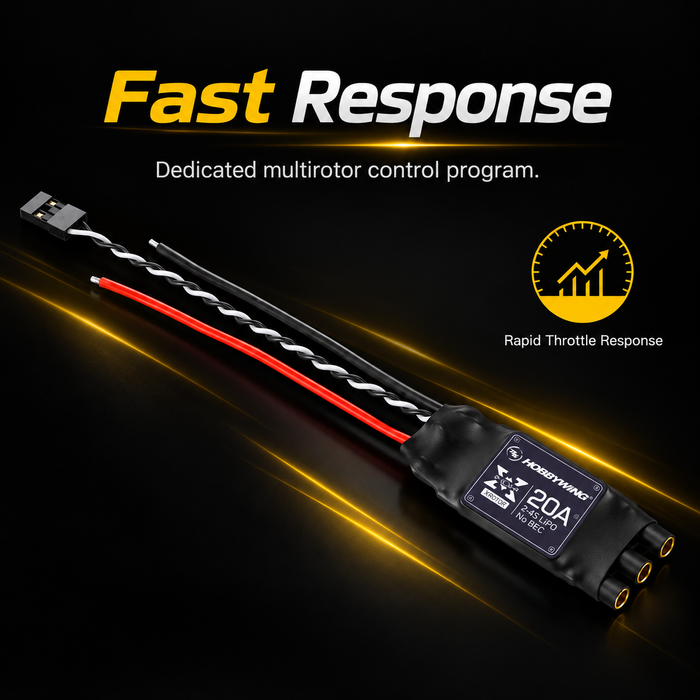

Rapid Throttle Response for Multirotor Flight
The XRotor 20A uses a dedicated control program developed specifically for multirotor ESC operation. In a multirotor aircraft, the flight controller continuously changes the speed of individual motors to control pitch, roll, yaw and altitude, so rapid ESC response is an important part of stable flight-control performance.
Hobbywing's XRotor firmware is designed around these frequent throttle changes rather than simply adapting a conventional surface-model or airplane ESC control strategy.

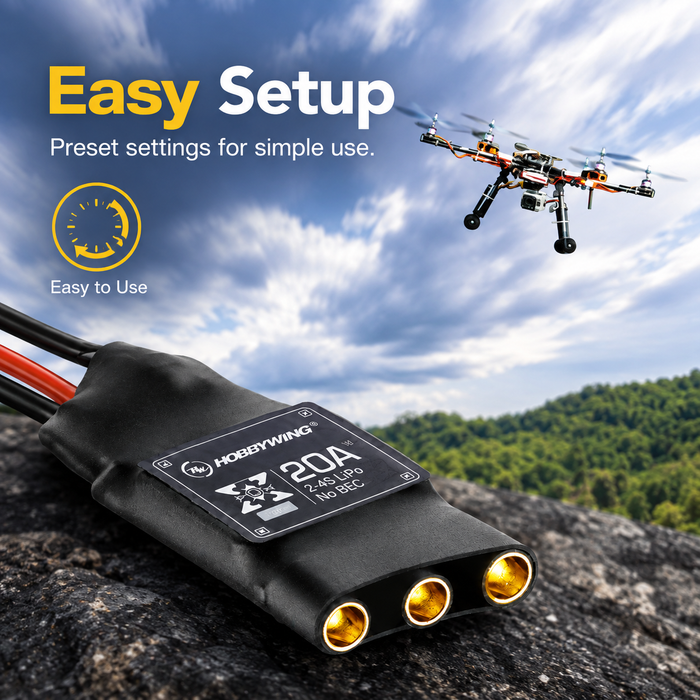

Simple Setup with Preset Multirotor Settings
Most operating parameters are preset to simplify installation and setup. The primary user-adjustable parameter on the XRotor 20A is motor Timing, which can be set to Intermediate or High using the transmitter throttle stick.
Intermediate Timing is the default setting and is suitable for most motors, generally providing a practical balance between efficiency and operating temperature. High Timing can increase motor RPM in applications that require it, but it can also increase motor temperature. Check motor and ESC temperatures carefully after changing the Timing setting.

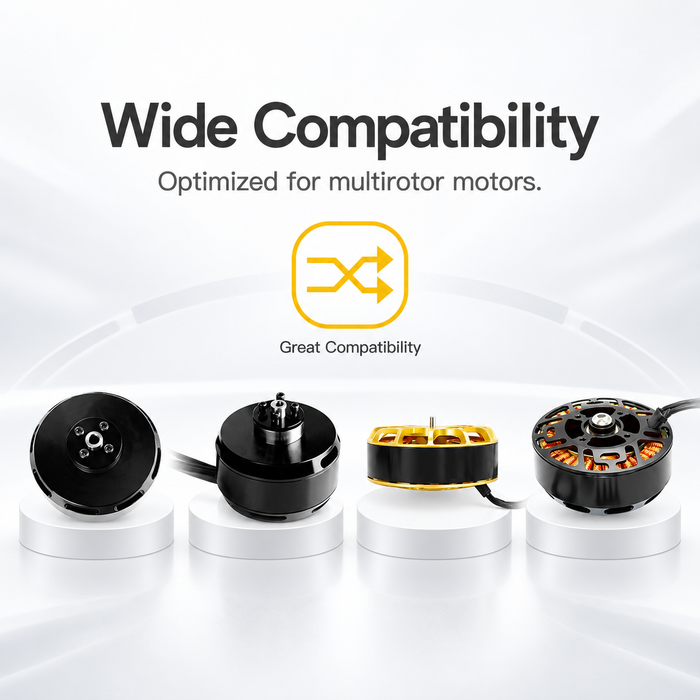

Optimized for Multirotor Brushless Motors
Hobbywing developed dedicated XRotor software to provide strong compatibility with the brushless motor types commonly used in multirotor aircraft, including disc-type multirotor motors.
ESC compatibility should still be evaluated as part of the complete propulsion system. Motor KV, propeller diameter and pitch, battery voltage, motor current draw, cooling and aircraft weight can all affect the electrical and thermal load placed on the ESC.

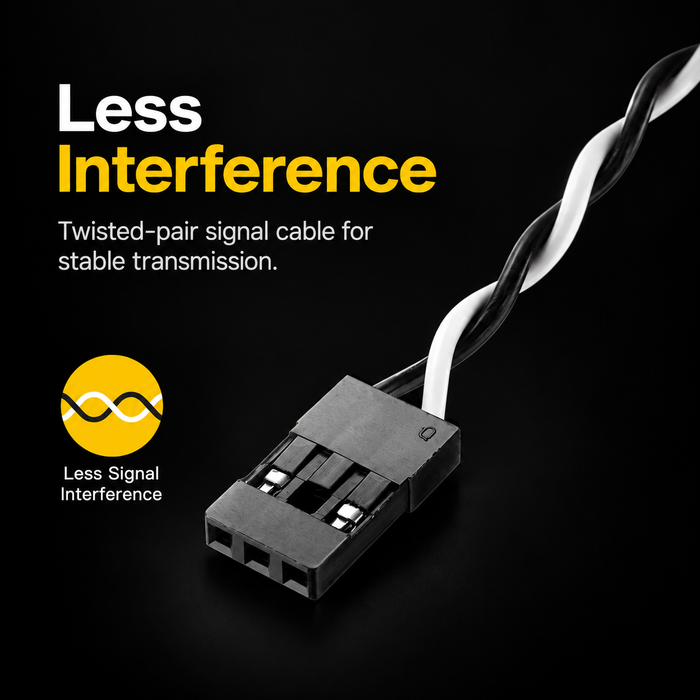

Twisted-Pair Throttle Cable Helps Reduce Signal Interference
The XRotor 20A uses a twisted-pair throttle signal cable designed to reduce interference and crosstalk during signal transmission.
This is particularly useful in multirotor installations where several ESCs, motors, high-current power wires and flight-control electronics may be installed close together. Reducing signal interference helps support stable and reliable communication between the flight controller and ESC.

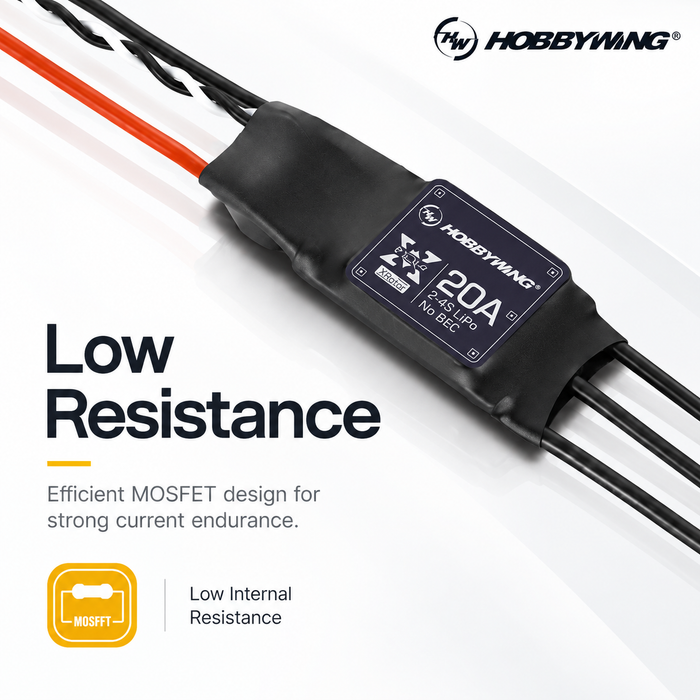

Low-Resistance MOSFET Design
The XRotor 20A uses low-resistance MOSFETs together with a dedicated MOSFET drive design to provide efficient switching and dependable current handling in a compact multirotor ESC.
The ESC is rated for 20A continuous current and 30A peak current. These ratings are hardware limits rather than automatic targets for every installation. Actual operating current depends on the complete motor, propeller and battery combination as well as airflow and ambient temperature.

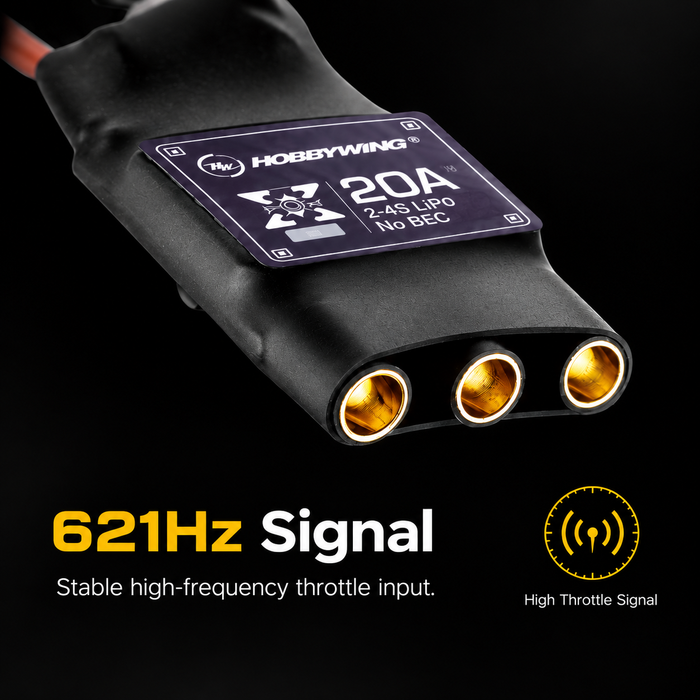

Throttle Signal Frequency up to 621Hz
The Hobbywing XRotor 20A is compatible with various flight-control systems and supports throttle signal frequencies of up to 621Hz. This allows frequent throttle updates between the flight controller and ESC during multirotor operation.
Important: Hobbywing notes that throttle signals above 500Hz are non-standard signals. Confirm that the selected flight controller and its throttle output configuration support the intended signal frequency before use.
No Built-In BEC
The XRotor 20A is a no-BEC multirotor ESC. It does not provide a regulated power output for the flight controller, receiver or other onboard electronics.
A suitable separate regulated power source, power module, UBEC or other flight-controller power arrangement must therefore be used where required by the aircraft's electrical system. Always verify the voltage and current requirements of the connected electronics before powering the aircraft.
Throttle Range Calibration & Timing Programming
Hobbywing recommends calibrating the throttle range when first using a new XRotor ESC or when changing to another transmitter or control setup.
The XRotor 20A can also be programmed through the transmitter throttle stick. Motor tones identify the available programming functions, including throttle calibration, Intermediate Timing and High Timing.
| Function |
XRotor 20A |
| Throttle Range Calibration |
Supported |
| Transmitter Programming |
Supported |
| Intermediate Timing |
Supported / Default |
| High Timing |
Supported |
| DEO |
Not supported |
| OneShot Throttle Mode |
Not supported |
| LED Color Programming |
Not supported |
| Motor Rotation Programming |
Not supported |
Safety: Remove all propellers before throttle calibration, ESC programming or initial power-system testing. A multirotor brushless power system can start unexpectedly during setup if the throttle or signal configuration is incorrect.
Built-In Protection Functions
The XRotor 20A includes several protection functions intended to reduce the risk of abnormal motor operation when the ESC detects a problem.
Start-Up Protection
If the ESC cannot start the motor normally within approximately two seconds while throttle is being increased, motor output is stopped. Return the throttle stick to the bottom position before restarting. Possible causes include a poor ESC-to-motor connection or a blocked propeller or motor.
Overload Protection
If the load suddenly rises to an unusually high level, the ESC can cut motor power. Normal operation does not resume until the throttle is returned appropriately. The ESC can also attempt to restart if synchronization between the motor and ESC is lost.
Throttle Signal Loss Protection
If the ESC detects loss of the throttle signal for more than approximately 0.25 second, it cuts motor output. Corresponding output can resume after a normal throttle signal is received again.
These protection functions are safeguards rather than substitutes for correct motor, propeller, battery, wiring and ESC selection.
Designed for 330/450 Class Multirotors
Hobbywing identifies the XRotor 20A as a reference ESC for 330/450 class quadcopters and multirotors. It is a practical direction for builds where the intended motor and propeller combination remains within the ESC's current limits when operating on a 3S or 4S LiPo battery.
The 330/450 class recommendation is a reference rather than a universal fitment guarantee. Frame size alone does not determine ESC load. Two aircraft of the same size can produce significantly different current draw depending on motor KV, propeller size and pitch, battery voltage, aircraft weight and flight style.
What to Check Before Buying
- Use only a 3S or 4S LiPo battery within the specified input range.
- Check the motor manufacturer's recommended ESC current requirement.
- Verify actual motor current with the intended propeller and battery voltage.
- Confirm there is enough mounting space for the selected 30901004 or 30901012 version.
- Provide adequate airflow and cooling around the ESC.
- Check the current rating and polarity of the power-distribution system and battery connector.
- Confirm the flight controller's throttle signal type and output frequency.
- Plan a separate regulated power source for the flight controller and receiver because the ESC has no BEC.
Hobbywing XRotor 20A Manual
The official Hobbywing XRotor manual covers motor wiring, throttle-range calibration, Timing programming, the normal start-up process, protection functions and troubleshooting for the XRotor 20A ESC.
Download the Hobbywing XRotor 20A ESC Manual
The manual specifies the XRotor 20A for 3-4S LiPo operation, with a 20A continuous and 30A peak current rating and no built-in BEC.
Frequently Asked Questions
What battery does the Hobbywing XRotor 20A support?
The XRotor 20A supports 3-4S LiPo batteries. It should not be operated on 2S, 5S or 6S based on the specification for the XRotor 20A versions sold on this page.
Can I use the XRotor 20A on 4S?
Yes. The XRotor 20A is specified for both 3S and 4S LiPo operation. The complete motor and propeller combination must still remain within the ESC's current and thermal limits.
What is the current rating of the XRotor 20A?
It is rated at 20A continuous current and 30A peak current.
Does the Hobbywing XRotor 20A have a BEC?
No. The XRotor 20A does not include a BEC. The flight controller, receiver and other onboard electronics require a suitable separate regulated power source according to the aircraft's electrical design.
Does the XRotor 20A include a battery connector?
No. The battery-side power wires are supplied without an input connector. Install a correctly rated connector or connect the ESC to an appropriate power-distribution system while observing correct polarity and current capability.
What motor connectors are installed?
The three motor output wires use 3.5mm gold female connectors.
Can I program the XRotor 20A?
Yes. Throttle-range calibration and transmitter throttle-stick programming are supported. Motor Timing can be selected between Intermediate and High, with Intermediate Timing used as the default setting.
Does the XRotor 20A support OneShot?
No. OneShot throttle mode is not supported on these XRotor 20A versions.
What is the difference between SKU 30901004 and 30901012?
Both versions share the same principal 20A / 30A electrical rating, 3-4S LiPo input range, no-BEC configuration and intended 330/450 class multirotor application. SKU 30901004 measures approximately 50.0 × 21.6 × 12.0mm and weighs about 15g, while the 30901012 Wire Leaded version measures approximately 42.0 × 21.6 × 12.0mm and weighs about 18.5g.
Is the XRotor 20A only for quadcopters?
The 330/450 class specification is given as a reference for quadcopters. Hobbywing's multirotor guidance can also extend to aircraft using other motor counts, but compatibility must be evaluated from the complete propulsion system rather than frame size alone.
Can the XRotor 20A accept a 621Hz throttle signal?
Yes. Hobbywing states that the ESC supports throttle signal frequencies up to 621Hz. Signals above 500Hz are classified by Hobbywing as non-standard, so flight-controller compatibility and configuration should be confirmed before use.
Note: A battery-side connector is not installed. Battery, motor, flight controller, receiver, external regulated power supply and other power-system components are not included unless otherwise stated in the product options.
