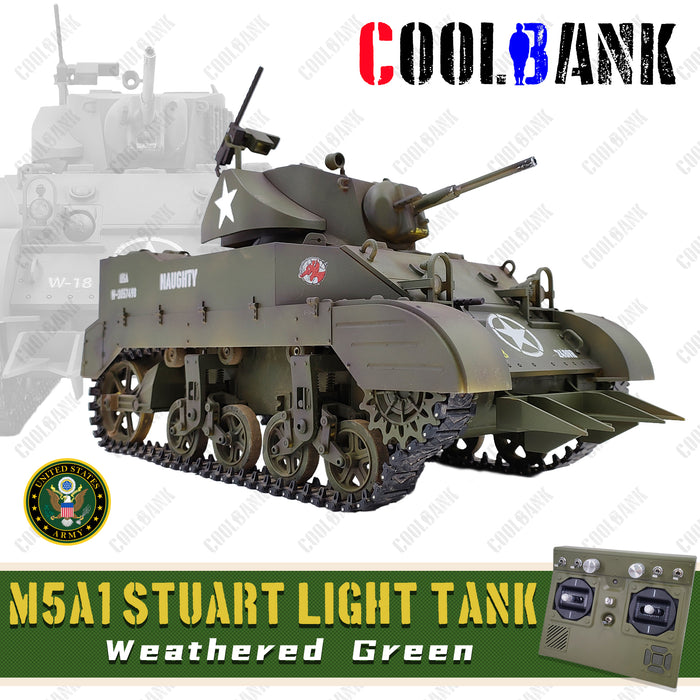

Bring WWII history to life with Coolbank’s M5A1 Stuart in Weathered Green. This 1/16 scale RTR tank blends collector-grade detailing with easy, ready-to-run operation. Proportional drive lets you creep, pivot, and swing the turret smoothly, while synchronized engine sounds, LED lighting, recoil action, and a functional smoke system heighten the realism. It’s the perfect blend of display presence and battlefield fun.
Highlights
Weathered Green finish with pre-shaded effects for an authentic, field-used look.
360° turret rotation with elevate/depress main gun and linked recoil effect on firing.
Realistic sound pack (engine, MG, firing) with convenient on/off control from the transmitter.
Functional smoke system (rear exhaust) – add smoke fluid via the hidden fill port; switchable on/off.
LED lighting with independent headlight & searchlight switches for night ops.
Proportional throttle/steering on 2.4GHz control – smooth low-speed creep to fast dashes and precise pivot turns.
Dual-speed selection plus advanced mix modes (proportional / hybrid) for different driving styles.
Modular detail parts (transparent MG barrels, antennas, glacis spikes, side tools) for custom display.
Quick magnetic/hinged battery hatch for easy 7.4V Li-ion pack swaps.
360° turret rotation with MG sweep.
Recoil action & firing flash.
Functional exhaust smoke (switchable).
Dual speed + proportional drive.
What’s Included
M5A1 Stuart 1/16 RC Tank – Weathered Green (RTR)
2.4GHz transmitter (requires 4 × AA batteries, not included)
360° rotation; gun elevation/depression; linked recoil on fire
Effects
Engine/MG sounds, LED lights, functional exhaust smoke (all switchable)
Top Speed
Approx. 6–8 km/h (dual speed selectable)
Control Range
Up to ~120 m (open area)
Run Time
~20 minutes per charge (usage & effects dependent)
Battery (Tank)
7.4V Li-ion pack (included)
Battery (TX)
4 × AA (not included)
Charging
USB 5V input; 0.5–1.5A recommended
Tips: For best smoke performance, add a few drops of smoke fluid via the fill port only. Do not overfill. All sound/smoke/light functions can be toggled from the transmitter. Complex combined actions (e.g., driving while rotating turret and firing) increase battery consumption.
Setup Notes
Charge the 7.4V pack using the included USB charger (5V, 0.5–1.5A). Do not use fast-charge phone adapters.
Insert the battery, secure the hatch, then power on the tank before the transmitter to bind automatically.
Smoke fluid: open the hidden fill port, add a few drops, close the cap. Switch smoke on/off from the TX.
Headlight and searchlight can be controlled independently from the TX (separate switches).
Accessory parts are sharp; keep away from small children. This product is recommended for ages 14+.
Frequently Asked Questions
Q: Is this tank ready to run out of the box?
A: Yes. The M5A1 is RTR. Install 4×AA batteries in the transmitter, charge the included 7.4V pack, and you’re ready.
Q: Can I turn the sound, smoke, or lights off?
A: Absolutely. All effects (engine/MG sounds, smoke, headlights & searchlight) are switchable from the transmitter.
Q: How long does one charge last?
A: Typical run time is around 20 minutes per charge, depending on speed and effect usage (sound/smoke consume more power).
Q: What’s the control range and turret capability?
A: Control range is up to ~120 m in open areas. The turret rotates a full 360°, and the main gun elevates/depresses with linked recoil when firing.
Q: Can I upgrade the battery?
A: The model uses a 7.4V (2S) pack. Experienced users may use a higher-capacity 2S pack of similar size/connector. Always charge with a suitable 2S charger and observe safety guidelines.
Q: Is the drive proportional or just two-speed?
A: Drive is proportional for smooth throttle/steering control. You can also select between two overall speed ranges from the transmitter.
